E-VLT

Leak Tester

Primary Uses:

Autonomous all-in-one solution that provides quick and accurate results for leak testing

  • Battery Pack Housing / Cooling System, Electric Motor Cavity, Gearbox Housing / Cooling System
  • Most advanced and accurate leak tester
  • Fully secured system
  • Embedded database
  • Complete traceability with test reports and storage capability
Request A Quote

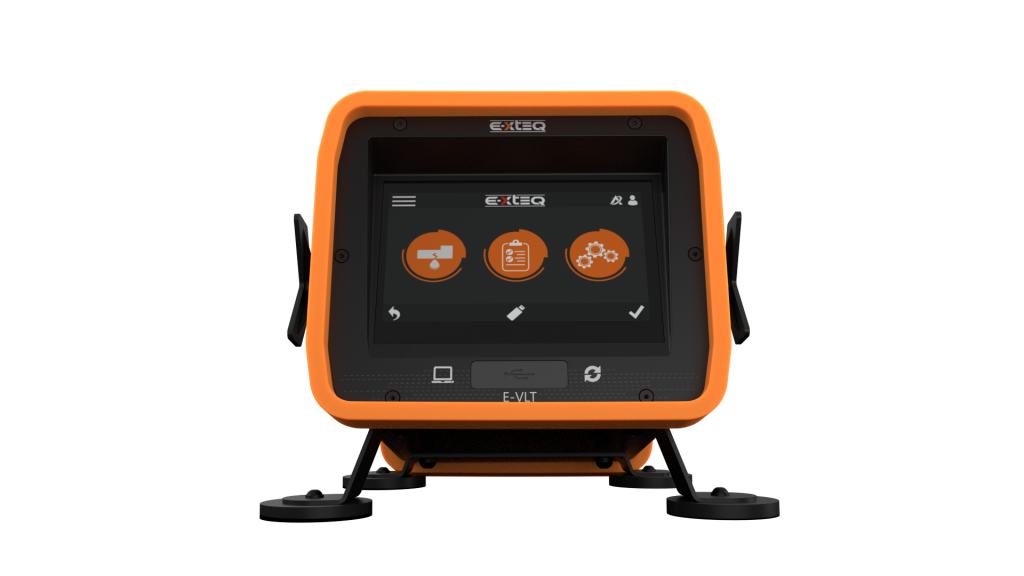

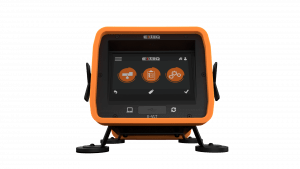

E-VLT

Leak Tester
7″ LED Color Touch
Screen Display with Icon
Based Menu
Aluminum housing
with powder
coated paint
7″ LED Color Touch
Screen Display with Icon
Based Menu
Aluminum housing
with powder
coated paint
Test Output Port
Power Connection
Robust industrial legs with embedded ant-scratch magnets
Storage Hooks
Test Output Port
Power Connection
Robust industrial legs with embedded ant-scratch magnets
Storage Hooks
Specifications

Specifications

Input
90-264 VAC 47/63 Hz (Compatible Worldwide)
Output
Tube hose 8mm-3m
Accuracy
Leak +/- (1% Reading + 1 Pa) Max resolution 0.1 Pa
Pressure +/- (1.5% of the pressure + 7.5 hPa) Max
resolution 0.01 PSI
Connectivity
Wifi: E-XTEQ Argos Cloud data transfer
User Interface
7’’ Color Touch Screen Display with
Icon Based Menu
Housing
Aluminum body with metal handle
Dimensions
370 x 309 x 271 mm
14.6 x 12.2 x 10.7 inches
Weight
8.4 kg – 18.5 lbs
Temperature
Usage: 5 to 45°C – Storage: 0 to 60°C
Usage: 40°F to 113°F – Storage: 32°F to 113°F
Humidity
20 to 80 % non-condensing

Frequently Asked
Questions

E-VLT- The leak tester dedicated to battery packs will evaluate the physical integrity of a body, verifying there is no detectable porosity, cracks, or any other defect producing the same consequences of porosity or crakes in the body, in case there are such defects, to evaluate the size of defects to decide if ti will affect the proper functionality of the body.

For the newest software update please refer to the instructions on the USER MANUAL.
